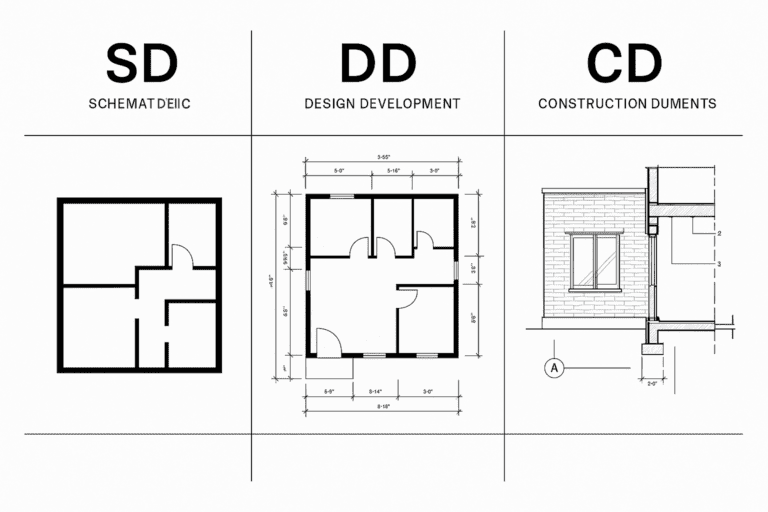

Within the architecture and construction arena, three pivotal stages navigate a project from idea to fruition: Schematic Design (SD), Design Development (DD), and Construction Documents (CD). Each of these stages contributes in its way towards shaping, developing, and realising architectural visions into real structures. As a property developer, project manager, or architect, it is important to know the differences and deliverables of SD, DD, and CD to plan, communicate, and execute efficiently. Let’s dissect what each phase entails and how they contribute to the success of a construction project.

Decoding Schematic Design (SD): Where Ideas Take Shape

Schematic Design, more commonly known as SD, is the first step in the architectural design process. It’s where the architect starts to interpret the client’s vision, needs, and functional requirements into general ideas and spatial configurations.

At this phase, perfection is not the aim but discovery. The architect submits various ideas on how the building can appear and operate, and involves the client in preliminary design conversations to solicit opinions.

Most Important Features of the SD Phase:

• High-level sketches and conceptual plans
• Simple floor plans, site plans, and elevations
• Preliminary materials and building systems
• Initial code research and zoning review
• Preliminary cost estimation
• Introduction of BIM for conceptual 3D modelling and early massing studies
• Early clash detection and feasibility analysis using BIM tools

The focus is on collaboration and flexibility, assisting stakeholders in visualising the possible direction of the project.

What You Get at the End of Schematic Design (SD)

At the end of the SD stage, the architectural team generally provides the following:

• Conceptual floor plans with initial dimensions
• Site plan and building orientation
• Building massing studies
• Basic elevation and 3D conceptual drawings
• Initial structural and MEP (Mechanical, Electrical, Plumbing) considerations
• Outline specification of materials
• Preliminary cost estimate or budget range
• Basic BIM model for visual presentations and stakeholder walkthroughs

These deliverables are used to inform decision-making and are imperative for stakeholder approvals prior to advancing to the next design stage.

Why Schematic Design Is Important: Advantages of the SD Phase

The SD phase has multiple advantages that frame the balance of the project:

• Early Clarity: Aligns client objectives with architectural possibilities.
• Risk Reduction: Pinpoints site, zoning, or code problems early.
• Budget Awareness: Provides a preliminary estimate of cost and viability.
• Informed Feedback: Facilitates constructive discussion and client feedback up-front.
• BIM enables dynamic visualization and quick iterations, improving client engagement

The success of Schematic Design can have a profound impact on the later stages of development’s efficiency, cost-effectiveness, and customer satisfaction.

Moving Forward with Design Development (DD): From Concept to Reality

After the schematic design is accepted, the project advances to the Design Development phase, or DD. During this stage, conceptual drawings are turned into more detailed and sophisticated technical plans.

The attention now turns from “what the building could be” to “how the building will be constructed.”

What Occurs Throughout the DD Stage?

• Material selection and finishes
• Detailed system layout (HVAC, electrical, plumbing)
• Structural engineering coordination
• More precise cost estimation – 5D BIM
• Inclusion of sustainability objectives and energy codes
• Expansion of the BIM model to include detailed architectural, structural, and MEP elements
• Improved clash detection and design validation across disciplines via BIM coordination tools

The DD phase is where the coordination among architects, engineers, and consultants is most important, making sure that all systems harmonise well.

Deliverables after Design Development (DD)

After the DD phase, you can anticipate an integrated and realistic set of documents, such as:

• Detailed floor plans with polished dimensions
• Enlarged sections and elevations
• Preliminary construction details
• Updated structural, mechanical, electrical, and plumbing plans
• Material specifications and product selections
• Revised project cost estimate
• Federated BIM model integrating all design disciplines for accurate coordination
• BIM-supported quantity take-offs for refined budgeting

These deliverables are significantly more technical and detailed than those of SD and are frequently utilised for financing and permit purposes.

Why Design Development Is So Important: Advantages of the DD Phase

The DD phase locks down design intent as it smooths out technical details. Its benefits are:

• Technical Precision: Gives clearness to how the building will perform and be built.
• Cost Control: Increases accuracy of cost estimates, reducing the risk of budget overruns.
• System Coordination: Ensures all systems are aligned and constructible.
• Code Compliance: Facilitates a deeper code analysis for early compliance planning.
• Use of BIM facilitates informed decision-making through data-rich simulations – 4D BIM
• BIM-based scheduling tools support time-sensitive milestones and sequencing



Skipping or rushing the DD phase can lead to costly rework and design errors down the line.

Understanding Construction Documents (CD): The Blueprint for Building

The last and most comprehensive stage of design is the Construction Documents (CD) stage. This is where the whole design is drawn up for construction, permit submission, and contractor bidding.

CD are technically detailed and comprehensive — they are the legally binding set of instructions that the on-site construction team will follow.

Key Elements of CD Phase:

• Final architectural drawings and annotations
• Construction details and sections
• Structural engineering plans
• Full MEP (mechanical, electrical, plumbing) drawings
• Specifications book (written record of materials, products, and installation)
• BIM is used to generate construction-ready documentation and ensure model fidelity
• Model-based quantity take-offs and cost estimates enhance procurement accuracy

Advantages of the Construction Documents (CD) Phase

When executed correctly, the CD phase guarantees the smooth conversion of design into reality. Advantages are:

Construction Accuracy: Reduces confusion and errors in construction.

Permit Approval: Offers documentation needed for regulatory approvals.

Bid Consistency: Guarantees that all contractors quote the same scope of work.

Risk Reduction: Clarifies responsibility and construction requirements, lowering disputes.

BIM enables model-driven construction sequencing and site logistics planning

Improves collaboration with contractors via shared models and data environments (CDES)

Construction Documents are the basis of contractual relationships among the owner, architect, and contractor.

In-House Challenges: Limitations of Creating SD, DD, and CD Internally

Although certain architecture companies and developers prefer to conduct all design phases in-house, this method poses several challenges:

Resource Constraints: Sustaining a full-time in-house staff with the required scope of expertise is expensive and inefficient.

Time Management: Juggling multiple projects at once can cause delays in delivery.

Software & Tools: Keeping up with the newest BIM and CAD tools involves ongoing investment.

Coordination Overload: Having different disciplines (structural, MEP, etc.) under one roof can get too complicated without specialised experts.

In-house design teams can fall short of project deadlines or budget targets without sacrificing quality.

Why Outsourcing SD, DD, and CD Services Is a Smart Strategy

Offshoring design services to third-party firms or offshore companies is increasingly becoming a strategic option for most construction businesses and design houses. Here’s why:

Availability of Expertise: Collaborating with companies that specialise in SD, DD, and CD allows access to dedicated professionals in their respective fields.

Cost Efficiency: Outsourcing, in most cases, equals lower cost without sacrificing quality.

Flexibility of Scale: Outsource teams can scale up or down depending on project requirements.

Quicker Turnaround: Outsourcing partners usually have efficient processes and tools that help deliver quickly.

International Talent Pool: It enables companies to tap into global standards and best practices.

More Focus on Core Competencies: In-house teams are free to concentrate on design strategy and client relationships while the technical work is outsourced.

For companies aiming to increase capacity and stay competitive, outsourcing is not merely a cost-reduction strategy; it’s a growth play.

Wrapping Up: Constructing Success Through Clever Design Phases

Knowledge of the functions and worth of Schematic Design (SD), Design Development (DD), and Construction Documents (CD) is crucial to providing successful architectural and construction projects. Each phase feeds into the other, progressively shaping ideas into constructible, code-compliant, and cost-effective buildings.

While internal capabilities are an asset, the technical sophistication and complexity of SD, DD, and CD stages frequently require specialist skills. Outsourcing these services can be a win-win situation, providing quicker, cheaper, and better-quality deliverables.

Whether you are opening a residential development, commercial complex, or industrial plant, spending wisely in these phases is the secret to architectural and construction success.

The Role of BIM Across SD, DD, and CD: A Unified Digital Backbone

BIM (Building Information Modelling) enhances each phase by serving as a digital backbone that supports visualisation, collaboration, and data integration across the project lifecycle.

• In SD:
   BIM helps with conceptual massing, sun studies, and early spatial planning.


• In DD:
   BIM integrates multidisciplinary details for accurate coordination, BIM clash detection, and cost estimation.


• In CD:
   BIM outputs precise construction drawings,Shop Drawings, model-based specifications, and streamlines communication with contractors.



BIM doesn’t just assist; it transforms how projects are visualized, documented, and delivered, leading to improved outcomes, reduced risks, and stronger collaboration.
